Since its introduction in the early 1990's, the Genesis EP thin plate pure lead (TPPL) battery has established itself as a premium high performance battery sutiable for a wide range of demanding applications.

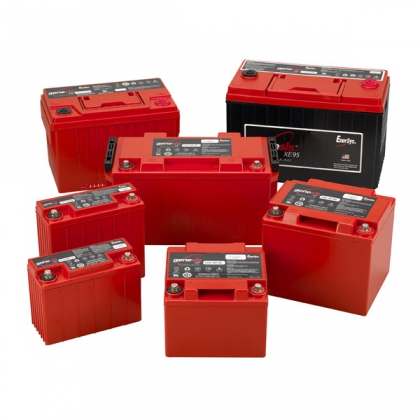

Genesis battery
|
Type |
Nominal Voltage (V) |
10 hr rate to 1.67Vpc @ 25°C/77°F |
|
Length mm |
Widt mm |
Height mm |
kg |
|
G13EP |
12 |
13 |
|
175.5 |
83.3 |
129.8 |
4.9 |
|
G16EP |
12 |
16 |
|
181.6 |
76.2 |
167.9 |
6.1 |
|
G26EP |
12 |
26 |
|
166.9 |
175.8 |
126.0 |
10.1 |
|
G42EP |
12 |
42 |
|
197.4 |
165.9 |
170.7 |
14.9 |
|
G70EP |
12 |
71 |
|
330.7 |
168.1 |
176.0 |
24.3 |
Genesis battery
Genesis XE系列是一款采用TPPL技术（纯铅薄极板）的产品。具有长浮充寿命，高放电能力和低自放电率，满足于各种苛刻的使用环境，可应用在多种行业当中，如通讯、UPS、储能、电力、新能源系统、引擎启动及动力等。对比Genesis EP产品，其具备更好的浮充寿命和机械强度。
|
Type |
Nominal Voltage (V) |
10 hr rate to 1.67Vpc @ 25°C/77°F |
Length mm |
Widt mm |
Height mm |
kg |
|
XE13 |
12 |
13 |
6.89 |
3.27 |
5.08 |
1 .9 |
|
XE16 |
12 |
16 |
7.12 |
2.99 |
6.57 |
14.1 |
|
XE30 |
12 |
28 |
6.53 |
6.89 |
4.92 |
23.3 |
|
XE40 |
12 |
42 |
7.74 |
6.50 |
6.69 |
35.4 |
|
XE60 |
12 |
62 |
10.85 |
6.76 |
7.12 |
49.4 |
|
XE70 |
12 |
68 |
12.94 |
6.54 |
6.85 |
56.6 |
|
XE95 |
12 |
95 |
12.99 |
6.79 |
8.62 |
77.4 |
Genesis battery
Today, Genesis EP TPPL technology can be found in applications as diverse as electronics, medical equipment, telecommunications, lawn and garden equipment, computer backup and UPS applications. the TPPL technology allows the battery to pack more power into a smaller footprint. The EP brand also offers deep cycling capabilities, fast recharge abilities and a non spillable design which allows mounting in any position except inverted.
Battery Design
12V pure lead-tin VRLA AGM
battery
UL 94V0 flame retardant case
and cover optional
M6 female no-maintenance
terminals
Can be installed in any
orientation except inverted
Rugged construction
(optional metal jacket)
Approved for shipping as
non-hazardous, nonspillable
Performance Features
-40˚C to 80˚C (-40˚F to 176˚F)
with metal jacket
300+ full depth of discharge
cycles
High rate charge and
discharge
2 year shelf life at
25˚C (77˚F)
Superior deep discharge
recovery
UL listing - file No. MH12544
