Figure: Dimensions
Order Data
Model Nominal Positioning Force FN
Nominal Positioning Speed VN
Available
Stroke
Part.-No.
EMS 18 / 200 / 4,21 / 16x5 / C 840 N 10 mm/s 200 mm 152445
EMS 18 / 100 / 4,21 / 16x5 / C 840 N 10 mm/s 100 mm 152443
EMS 18 / 50 / 4,21 / 16x5 / C 840 N 10 mm/s 50 mm 152441
EMS 18 / 200 / 2,45 / 16x5 / C 420 N 20 mm/s 200 mm 152452
EMS 18 / 100 / 2,45 / 16x5 / C 420 N 20 mm/s 100 mm 152450
EMS 18 / 50 / 2,45 / 16x5 / C 420 N 20 mm/s 50 mm 152448
EMS 18 / 200 / 1,33 / 16x5 / C 200 N 40 mm/s 200 mm 231818
EMS 18 / 100 / 1,33 / 16x5 / C 200 N 40 mm/s 100 mm 231816
EMS 18 / 50 / 1,33 / 16x5 / C 200 N 40 mm/s 50 mm 228482
Technical Specifications (mechanical)
Gearbox Ratio 1:4,21 1:2,45 1:1,33
Weight 50 mm stroke = 4,5 kg; 100 mm stroke = 5,0 kg; 200 mm stroke = 5,8 kg
eCl@ss 27-02-90-90
Noise Emission < 70 dB
Protection Class IP 54
RoHS Conformity yes
Storage Temperature -10°C to +60°C
Ambient Conditions Temperature: 0°C to +40°C
Humidity: 5 % - 90 %; no condensation
Technical Specifications (electrical)
Motor:
Nominal Voltage 24 V DC
Nominal Current 1,1 A
Nominal Power 12 W
Electrical Connection only via BST connection cable
Position Feedback:
Power Supply 12 – 24 V DC
Output Value 0 – 10 V ; maximum 1 mA

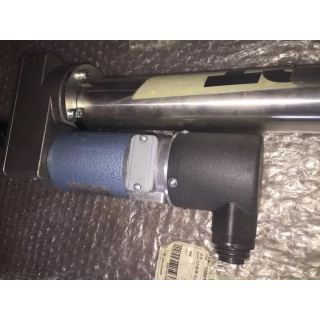

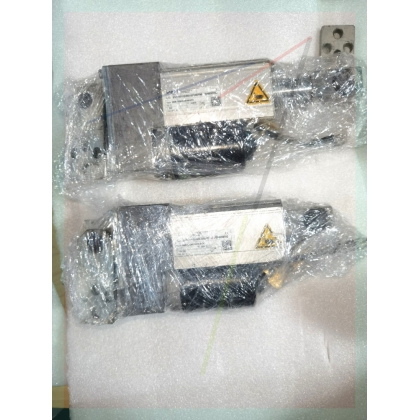

Figure: EMS 18/C
Application
The electric motor driven actuator EMS
18/C is used in combination with a BST
control unit and a mechanical guiding
device anywhere where correction of
the position of running webs, e.g.
paper, plastic materials, rubber, textiles,
etc., is necessary.
The complete connection-ready design
enables fast and inexpensive installation in appropriate systems, and is
especially suitable for upgrading or
replacement in existing systems.
Special Features
? Complete actuator with maintenance-free drive
? Plug-type connection
? for curved and linear positioning
? various combinations of stroke,
positioning force and positioning
speed are possible
Included Parts
Actuator EMS 18/C, comprising:
? electric motor
? integral absolute position detection
? housing block with bearing and
gearbox
? ball screw with push pipe
? final position damping
? mounting bolts
Calculating the Nominal Positioning Force
The nominal positioning force FN of the
actuator must exceed the break-away
force FL of the equipment to be moved.
Calculation of the break-away force FL
[N]: FL = G * μ0
G total weight of the equipment
μ0 friction coefficient
(e.g. 0.1 with reel friction
