COMMON FEATURES ¬ 共同特性
Body material: brass (CW617N EN 12165) ¬ 阀体材质: 黄铜 (CW617N EN 12165)
Orifice material: stainless steel (1.4305 EN 10088/AISI 303) ¬ 端口材质: 不锈钢 (1.4305 EN 10088/AISI 303)
Operator material: stainless steel ¬ 操作器材质: 不锈钢
Protection class: IP 65 (with connector and gasket) ¬ 保护等级: IP65 (包括连接器和垫片)
OPTIONS ¬ 选项
Available with body thread connection 1/8" (e.g. code D262DVH), performance ratings remain the same as D263DVH.
¬ 可提供 1/8" 螺纹的阀体 (如型号 D262DVH), 性能与 D263DVH 相同
Manual override (e.g. code D262DVCM) ¬ 手控装置 (如型号 D262DVCM)

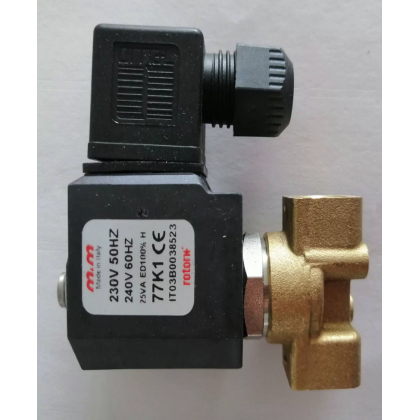

D262/263
- FKM seal, NC FKM 密封, NCMedia:
water, oil, air 流体: 水，油，空气
Media temperature: -10°C ÷ +130°C 流体温度: -10°C ÷ +130°C
Ambient temperature: -10°C ÷ +50°C 环境温度: -10°C ÷ +50°C
Seal material: foodgrade FKM 密封材质: 食用 FKM
Coil power: AC 18va (holding 持续)
线圈功率: AC 36va (inrush 起动)
