技术参数 |
|
|
安装方式 |
齐平 |
|
检测距离 |
1mm |
|
LED显示 |
有 |
|
工作电压 |
10-30VDC |
|
允许脉动电压 |
<10% |
|
无负载电流 |
<10mA |
|
负载电流 |
200mA |
|
漏电流 |
<0.01mA |
|
电压降 |
<1.5v |
|
开关频率 |
2KHZ |
|
响应时间 |
0.1ms |
|
开关磁滞 |
<15%(Sr) |
|
重复精度 |
<1.0%(Sr) |
|
防护等级 |
IP67 |
|
工作温度 |
-25℃至+70℃ |
|
温度漂移 |
<10%(Sr) |
|
过载电流保护 |
220mA |
|
感应面材质 |
PBT |
|
连接方式 |
2米防油PVC电缆 |

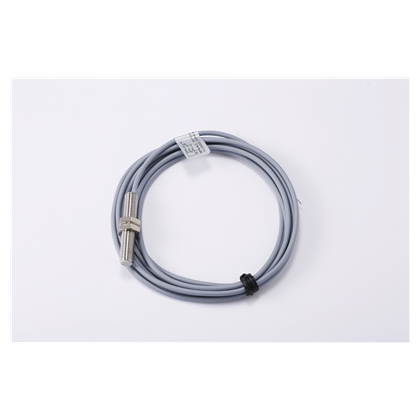

M8电感式近接传感器，检测距离1mm/2mm/3mm/4mm，齐平，标准型体长45mm，短型体长30mm，超短型体长18mm，出线式：
I1SF-M801N-O3U2,I1SF-M801N-C3U2,I1SF-M801P-O3U2,
I1SF-M801P-C3U2,I1SF-M802N-O3U2,I1SF-M802N-C3U2,
I1SF-M802P-O3U2,I1SF-M802P-C3U2,I1SF-M803N-O3U2,
I1SF-M803N-C3U2,I1SF-M803P-O3U2,I1SF-M803P-C3U2,
I1CF-M804N-O3U2,I1CF-M804N-C3U2,I1CF-M804P-O3U2,
I1CF-M804P-C3U2,I1SF-M801N-O3S2,I1SF-M801N-C3S2,
I1SF-M801P-O3S2,I1SF-M801P-C3S2,I1SF-M802N-O3S2,
I1SF-M802N-C3S2,I1SF-M802P-O3S2,I1SF-M802P-C3S2,
I1SF-M803N-O3S2,I1SF-M803N-C3S2,I1SF-M803P-O3S2,
I1SF-M803P-C3S2,I1CF-M804N-O3S2,I1CF-M804N-C3S2,
I1CF-M804P-O3S2,I1CF-M804P-C3S2,I1SF-M801N-O3R2,
I1SF-M801N-C3R2,I1SF-M801P-O3R2,I1SF-M801P-C3R2,
I1SF-M802N-O3R2,I1SF-M802N-C3R2,I1SF-M802P-O3R2,
I1SF-M802P-C3R2,I1SF-M803N-O3R2,I1SF-M803N-C3R2,
I1SF-M803P-O3R2,I1SF-M803P-C3R2,I1CF-M804N-O3R2,
I1CF-M804N-C3R2,I1CF-M804P-O3R2,I1CF-M804P-C3R2,
I4CF-M802C-O2U2，I4CF-M802C-C2U2,I4CF-M803C-O2U2，I4CF-M83C-C2U2
