德国VEGA
加工定制
否
测量范围
见详情
分辨率
0.1
测量精度
高
数量
20
可售卖地
全国
类型
智能雷达物位计
型号

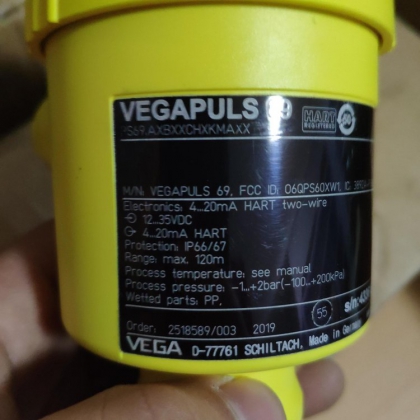

VEGAPULS69
雷达传感器用于粒料的持续性物位测量
应用范围
Bulk solids in small up to large vessel heights
The VEGAPULS 69 is a sensor for continuous measurement of bulk solids under different process conditions. It is ideal for level measurement in very high silos, large bunkers and segmented vessels. Thanks to the very good signal focussing a simple setup and reliable measurement is ensured. The VEGAPULS 69 can be equipped with an encapsulated plastic antenna or a lens antenna integrated in the metal flange. This enables the optimum adaption to different application areas.
您的获益
设备可用性高，无损耗免维护
免维护无接触测量
测量精确度高，不受蒸汽，灰尘或噪声影响
技术参数
量程 - 距离
120 m
过程温度
-40 200 °C
过程压力
-1 20 bar
测量精度
± 5 mm
型式
with plastic horn antenna ? 80 mm
metal jacketed lens antenna
接液材质
316L
PEEK
螺纹连接
G1?, 1? NPT
法兰连接
≥ DN80, ≥ 3"
密封材料
EPDM
FKM
外壳材料
塑料
铝Aluminium
不锈钢，精密铸件
不锈钢，经电解抛光
保护方式
IP 66/IP 68 (0.2 bar)
IP 66/IP 67
IP 66/IP 68 (1 bar)
输出
Profibus PA
Foundation Fieldbus
4 … 20 mA/HART - two-wire
Modbus
4 … 20 mA/HART - four-wire
