• 振动和角度传感器，有效范围提高到+/-16g
• 3 axes acceleration sensors with progammable alarms and full scale.
• 可编程警报和满量程的3轴加速度传感器
• MEMS (microelectromechanical sensors) technology.
• 微电子机械系统技术
• Operative range: 0…400Hz 有效范围：0…400Hz
• Dimensions: M18 cylindrical short housing外形：M18圆形短外壳
• All functions, alarms, thresholds completely programmable.
• 所有的功能，报警、阈值都是可编程的
• 1x RS485 + 1x Analogue (current or voltage programmable) outputs
• 1x RS485 + 1x Analogue（电流和电压可编程）输出
• User Interface (4 Leds + RS-485)
• 用户界面（4个LED灯+RS-485）

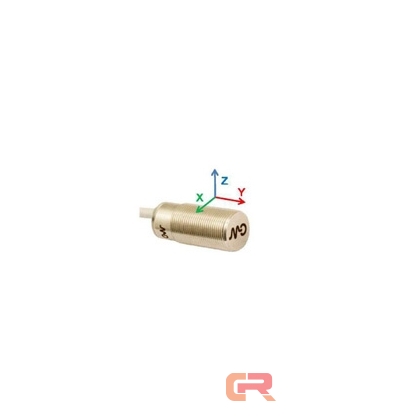

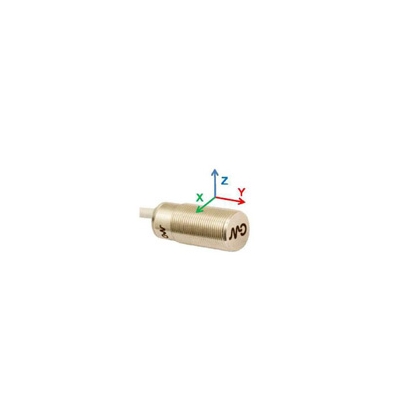

M18 cylindrical sensor (or cubic)
M18圆形传感器
• 5 pole cable or M12 pig-tail 5孔电缆或带有M12头的电缆
• Metal housing (and/or plastic) 金属外壳（和/或塑料）
• Full scale (programmable):全量程（可编程）
• +/-2g 2000mg / 128 = 15,625 mg
• +/- 4g 4000mg / 128 = 31,25 mg
• +/- 8g 8000mg / 128 = 62,5 mg
• +/- 16g 16000mg / 128 = 125 mg
• Analogue output (12/16bit) programmable Voltage/Current
• 模拟输出（12bit）电压/电流可编程
• User interface with 4 worning leds and teach on BUS
• 用户界面是4个LED等和在总线上示教
• Completely resined sensor (IP 65-67)
• 完全灌胶的传感器（IP67）
• BUS RS-485 addressable (max 128 nodes)
• RS-485总线可寻址（最大128个节点）
Operative frequency: from 0 to 400 Hz 有效范围： 从0 到400 Hz
Programmable alarms: 128 livels, resolution depending on full scale可编程警报：128级，分辨率
取决于全量程
BUS RS-485 output: 3 axes datas available @ max. bus frequency.
Application: industrial robot应用：工业机器人
Need: speed and movements of the robot can be set according to the weight of
the priduct. If, during the movement, the product fall down, the arm can have
incorrect movements/accerations
需求：机器人的速度和运动根据产品的重量设定，如果产品掉落，机械臂会
报错
How: VBR sensor can detect changes in the acceleration of the arms and so
decrease the speed in case of alarms.
解决：VBR能检测机械臂加速度的变化，所以减少速度警报
