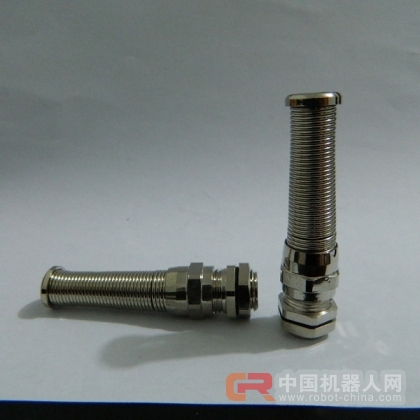

产品名称：铜镀镍防爆接头，又称防爆格兰头或防爆电缆固定头。
螺牙规格 ：公制牙MG螺牙，符合VDE 0619/EN50262标准。
产品说明 ：防爆铜材质制而成，具防爆功能，特殊夹紧爪与夹紧圈之设计，夹紧电缆范围大，抗拉力特强，可防水、防尘、抗盐、耐弱酸、酒精、油、油脂及一般溶剂。
防护等级 ：在规定的卡口范围内，并使用密封圈旋紧迫紧头，达到IP68-10Bar
工作温度 ：-40℃~＋100℃短时可达＋120℃
产品材质 ：A.C.F 部份以黄铜制成，E 部份以 UL 认可之尼龙 PA66 制成 ( 防火等级 UL 94V-2 )B 及 D 部份采用EPDM耐候橡胶制成。
安装方法 ：铜镀镍防水接头出线口一端可将进出电缆锁紧并起到防水防尘、防震动的作用，另一端可接入设备箱体上，也可以根据选用螺纹。接入进出口为内螺纹的电动设备上。
产品颜色 ：金属色，接受定制耐高温,阻燃V0级,耐酸碱等,欢迎致电咨询。
免费提供样品，不限起订量，规格齐全，现货充足。
|
型号 Part No. |
螺纹标准 M |
电缆范围 Cable Range （mm） |
螺纹长度 （mm） |
扳手尺寸 （mm） |
|
CGB-M12 |
M12*1.5 |
3-7 |
6 |
14 |
|
CGB-M14 |
M14*1.5 |
3-7 |
6 |
14/16 |
|
CGB-M16 |
M16*1.5 |
4-8 |
7 |
17/18 |
|
CGB-M18 |
M18*1.5 |
6-10 |
7 |
20 |
|
CGB-M20 |
M20*1.5 |
8-12 |
8 |
22 |
|
CGB-M22 |
M22*1.5 |
10-14 |
8 |
24 |
|
CGB-M24 |
M24*1.5 |
10-14 |
8 |
24/27 |
|
CGB-M25 |
M25*1.5 |
10-14 |
8 |
24/27 |
|
CGB-M27 |
M27*1.5(2) |
13-18 |
8 |
30 |
|
CGB-M30 |
M30*1.5(2) |
13-18 |
8 |
28/34 |
|
CGB-M32 |
M32*1.5(2) |
15-22 |
9 |
34 |
|
CGB-M33 |
M33*1.5(2) |
15-22 |
9 |
34/36 |
|
CGB-M36 |
M36*1.5(2) |
18-25 |
9 |
40 |
|
CGB-M37 |
M37*1.5(2) |
18-25 |
9 |
40 |
|
CGB-M40 |
M40*1.5(2) |
22-28 |
10 |
43 |
|
CGB-M42 |
M42*1.5(2) |
22-28 |
10 |
43/45 |
|
CGB-M48 |
M48*1.5(2) |
25-32 |
10 |
50/52 |
|
CGB-M50 |
M50*1.5(2) |
25-32 |
10 |
50/55 |
|
CGB-M54 |
M54*1.5(2) |
32-38 |
12 |
58 |
|
CGB-M56 |
M56*1.5(2) |
32-38 |
12 |
58 |
|
CGB-M60 |
M60*1.5(2) |
37-44 |
12 |
64 |
|
CGB-M63 |
M63*1.5(2) |
37-44 |
12 |
64/68 |
|
CGB-M64 |
M64*1.5(2) |
37-44 |
12 |
64/68 |
|
CGB-M72 |
M72*1.5(2) |
42-52 |
15 |
76/78 |
|
CGB-M75 |
M75*1.5(2) |
42-52 |
15 |
76/78 |
|
CGB-M76 |
M76*1.5(2) |
42-52 |
15 |
76/78 |
|
CGB-M80 |
M80*1.5(2) |
55-60 |
16 |
86/88 |
|
CGB-M85 |
M85*1.5(2) |
55-60 |
16 |
86/88 |
|
CGB-M85 |
M85*1.5(2) |
65-70 |
18 |
98 |
|
CGB-M88 |
M88*1.5(2) |
65-70 |
18 |
98 |
|
CGB-M90 |
M90*1.5(2) |
65-70 |
18 |
98 |
|
CGB-M100 |
M100*1.5(2) |
75-80 |
20 |
110 |
铜电缆接头NPT螺纹
|
型号 Part No. |
螺纹标准 NPT |
电缆范围 Cable Range （mm） |
螺纹长度（mm） |
扳手尺寸 （mm） |
|
CGB-NPT1/4" |
NPT1/4" |
3-7 |
6 |
14 |
|
CGB-NPT3/8" |
NPT3/8" |
4-8 |
7 |
18 |
|
CGB-NPT1/2" |
NPT1/2" |
8-12 |
8 |
22 |
|
CGB-NPT3/4" |
NPT3/4" |
13-18 |
8 |
30 |
|
CGB-NPT1" |
NPT1" |
15-22 |
9 |
36 |
|
CGB-NPT1-1/4" |
NPT1-1/4" |
22-28 |
10 |
45 |
|
CGB-NPT1-1/4" |
NPT1-1/4" |
22-30 |
10 |
45 |
|
CGB-NPT1-1/2" |
NPT1-1/2" |
25-32 |
10 |
50 |
|
CGB-NPT2" |
NPT2" |
37-44 |
12 |
64 |
铜电缆接头PG螺纹
|
型号 Part No. |
螺纹标准 PG |
电缆范围 Cable Range（mm） |
螺纹长度 （mm） |
扳手尺寸 （mm） |
|
CGB-PG7 |
PG7 |
3-7 |
6 |
14 |
|
CGB-PG9 |
PG9 |
4-8 |
7 |
17 |
|
CGB-PG11 |
PG11 |
6-10 |
7 |
20 |
|
CGB-PG13.5 |
PG13.5 |
8-12 |
8 |
22 |
|
CGB-PG16 |
PG16 |
10-14 |
8 |
24 |
|
CGB-PG19 |
PG19 |
10-14 |
8 |
24/27 |
|
CGB-PG21 |
PG21 |
13-18 |
8 |
30 |
|
CGB-PG25 |
PG25 |
15-22 |
9 |
34 |
|
CGB-PG29 |
PG29 |
18-25 |
9 |
40 |
|
CGB-PG36 |
PG36 |
25-32 |
10 |
50 |
|
CGB-PG42 |
PG42 |
32-38 |
10 |
58 |
|
CGB-PG48 |
PG48 |
37-44 |
12 |
64 |
|
CGB-PG63 |
PG63 |
43-52 |
15 |
76/78 |
铜电缆接头G螺纹
|
型号 |
螺纹标准 G |
电缆范围（mm） |
螺纹长度（mm） |
扳手尺寸（mm） |
|
CGB-G1/4” |
G1/4” |
3-7 |
6 |
14 |
|
CGB-G3/8" |
G3/8" |
4-8 |
7 |
17/18 |
|
CGB-G1/2" |
G1/2" |
8-12 |
8 |
22 |
|
CGB-G3/4" |
G3/4" |
13-18 |
8 |
30 |
|
CGB-G1" |
G1" |
15-22 |
9 |
34/36 |
|
CGB-G1-1/4" |
G1-1/4" |
22-28 |
10 |
43/45 |
|
CGB-G1-1/4" |
G1-1/4" |
22-30 |
10 |
43/45 |
|
CGB-G1-1/2" |
G1-1/2" |
25-32 |
10 |
50/52 |
|
CGB-G2" |
G2" |
37-44 |
12 |
64 |
|
CGB-G2-1/2" |
G2-1/2" |
42-52 |
15 |
76/78 |
|
CGB-G3" |
G3" |
65-70 |
18 |
98 |
