为您提供 CMM 视觉感受

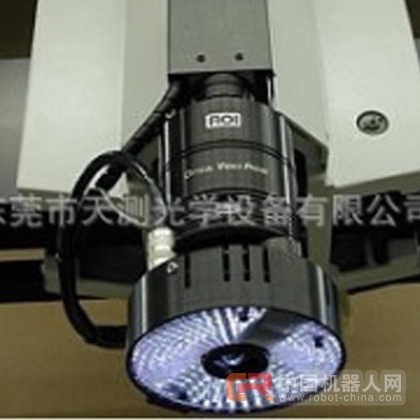

拥有专利的, RAM-设计的 Optical Video Probe (OVP™) is designed to mount to Coordinate Measuring Machines (CMMs) and toolmaker's microscopes. Use OVP for accurate video inspection right on your CMM. Zoom in for detailed images in full color.
Features:
- Parfocal zoom optics with motorized zoom control
- InSite™ 2 controller with color LCD monitor, integral DRO, electronic skew adjustment and edge detection indicator
- VectorLight™ provides on-axis and ring illumination utilizing white LEDs for high definition illumination of complex parts at any magnification
- Adds high-resolution, non-contact video inspection capabilities to CMMs & other systems
- Easily adapts to virtually any CMM
- Built to withstand most shop environments
|
Specifications 6 |
|
Technical |
|
|
Magnification Rang on 6.75: monitor |
10X-75X, continuous |
|
Lighting |
VectorLight |
|
Fiber Optic Bundle Size |
1/2" Diameter |
|
Camera |
High resolution color CCD with 768X 494 pixel array |
|
Power Requirements,Controller |
110VAC,50-60HZ |
|
Optional Zoom objective |
|
|
Working Distance |
3.3"(85mm) |
|
Magnification on 13" Monitor |
25X-150X |
|
Horizontal Field of View |
0.050-0.07"(11.4-1.8mm) |
